Hardwired Control in Computer Organization

hardwired

Overview

  • To execute instructions, the processor must have some means of generating the control signals needed in the proper sequence.
  • Two categories: hardwired control and microprogrammed control
  • The hardwired system can operate at high speed, but with little flexibility.

Control Unit Organization

control unit organization

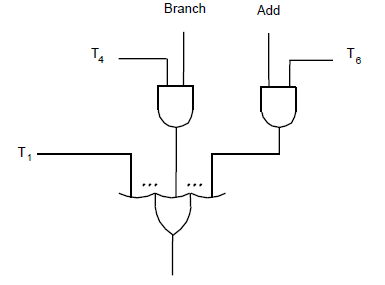

Generating Zin

  • Zin = T1 + T6 • ADD + T4 • BR + …
  • generating zin
  • End = T7 • ADD + T5 • BR + (T5 • N + T4 • N) • BRN +…
